The AR-40 is for large FM-TV and compact communication antenna arrays up to 3 square feet wind load area. Dual 12 ball bearing race is exclusive to its class. Automatic position sensor never needs resetting.

Fully automatic control -- just dial and touch for any desired location. Solid state, low voltage control, safe and silent operation. It has a maximum mast size of 2 1/16 inches. Includes MSLD light duty lower mast support. Operates at 110V.

AR-40 Rotator Specifications
Wind Load Capacity (inside tower)	3.0 square feet
Wind Load (w/ Mast Adapter)	1.5 square feet
Turning Power	350 pounds
Brake Power	450 pounds
Brake Construction	Disc Brake
Bearing Assembly	Dual race/12 ball bearings
Mounting Hardware	Plated clamps/steel bolts
Control Cable Conductors	5
Shipping Weight	14 pounds
Effective Movement (in tower)	300 ft/lbs.

Covers 10, 15, and 20 Meters.

Specs:

Gain: 5.8 dBd (avg.).

F/B Ratio: 25 dB (avg.).

Max Power: 1500 Watts PEP.

Boom Length: 14 feet.

Longest Element: 27 feet, 5 inches.

Turning Radius: 15 feet, 4 inches.

Mast Diameter: 1.9 to 2.5 inches OD.

Surface Area: 4.6 square feet.

Net Weight: 35 pounds.

Wind Survival: 95 mph.

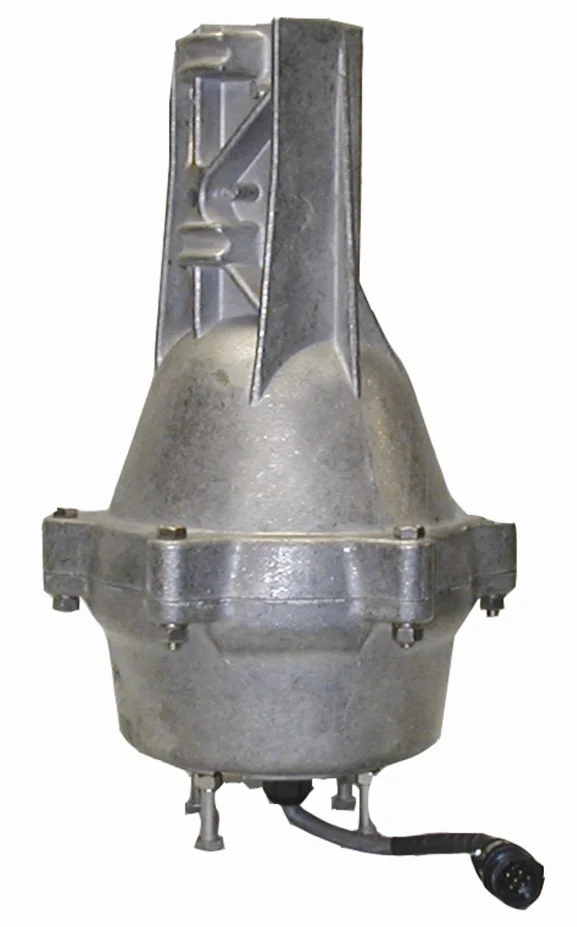

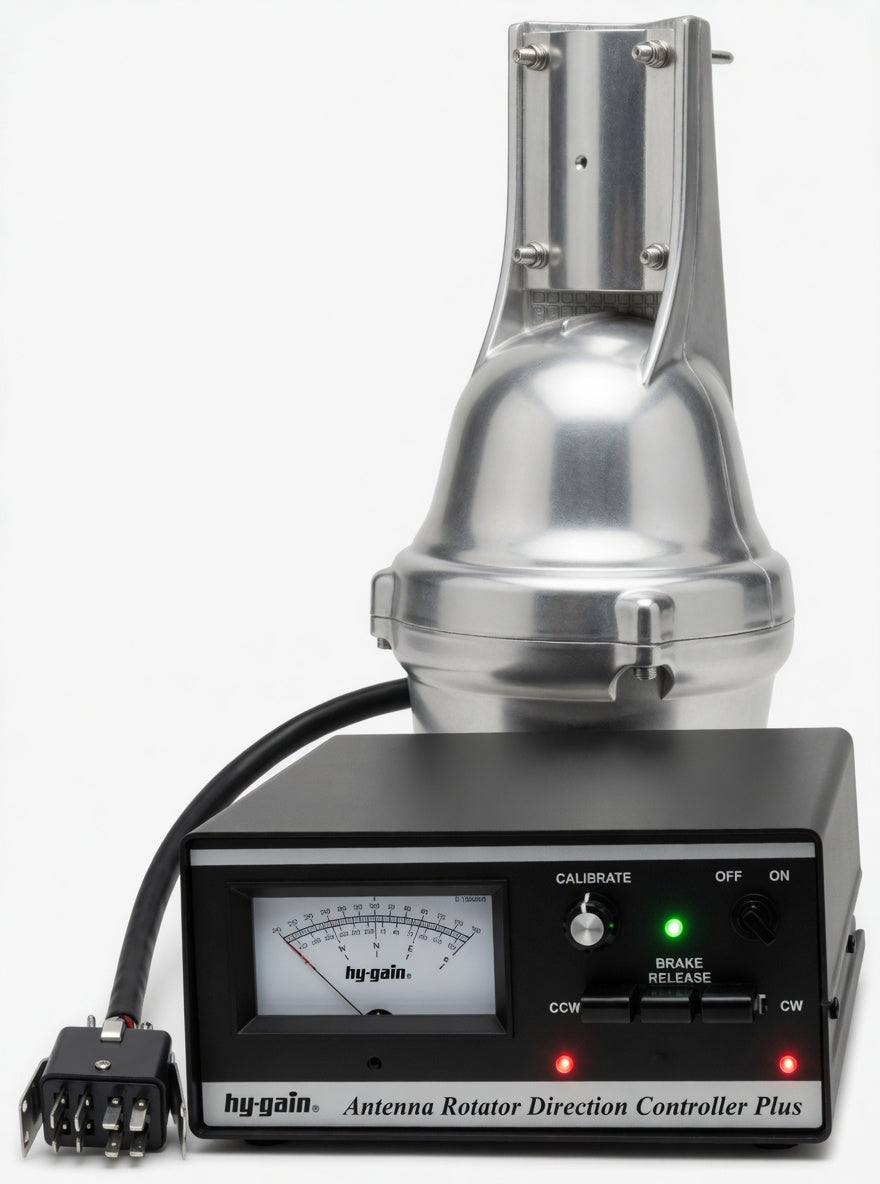

HAM-IV is the most popular rotator in the world ! It’s solidly constructed, has been time-tested and proven for over twenty years.

HAM-IV is for medium communications arrays up to 15 square feet wind load area (7.5 sq. ft. with mast adapter). It has 800 inches-lbs. turning power and 5000 inches-lbs. brake power.

Automatic 5-second brake delay insures that the rotator is fully stopped before the brake is engaged. No more accidentally engaging the brake while the rotator is in movement.

New Test/Calibrate function. New low temperature grease permits normal operation down to -30°F. New alloy ring gear gives extra strength to 100,000 PSI for maximum reliability.

New indicator potentiometer has been improved for greater reliability. Silver-plated relay contact point makes for smooth traveling and more reliable contact between pot strip and wiper arm - gives years longer life span on these important, internal components.

Detachable 8 pin latching Cinch connectors make easy removal at rotator and 8 pin plug at controller. Dual 98 ball bearing race for load bearing strength and electric locking steel wedge brake prevents wind induced antenna movement. North or South center of rotation scale on meter, low voltage control, max mast size 2 1/16”.110 VAC.

Order HAM-IVX for 220 VAC operation. Optional lower mast support, MSHD

HAM-IV Rotator Specifications
Wind Load Capacity (inside tower)	15 square feet
Wind Load (w/ Mast Adapter)	7.5 square feet
Turning Power	800 pounds
Brake Power	5000 pounds
Brake Construction	Electric Wedge
Bearing Assembly	Dual race/96 ball bearings
Mounting Hardware	Clamp Plates/Steel U-Bolts
Control Cable Conductors	8
Shipping Weight	24 pounds
Effective Movement (in tower)	2800 ft/lbs.

Remote Controlled Rotator/Controller

Designed for the use of small UHF, VHF, 6-Meter, TV and FM antennas.

Has programmable antenna controller with remote-control.

AR-500 remembers up to 12 antenna directions even after a power outage!

Control all functions with the remote control or console. The control console displays location chosen and relative position.

Rugged heavy-duty rotator is built in a weather-proof one piece cast aluminum housing. Has precision metal gears and steel thrust bearings for durability. Includes rotator, controller, mount clamps and hardware.

Includes rotator, controller, 3-device universal remote, mount clamps and hardware.

Uses 110 VAC

See the AR-500X for 220 VAC version.

Hy-Gain

Multi-Band PATRIOT Vertical Antennas

9-band vertical covers 80/40/30/20/17/15/12/10/6 Meters

• No radials • No traps • No ground • No tuning • Handles 1500 Watts

hy-gain’s PATRIOT HF vertical antennas are the best built, best performing and best priced multiband verticals on the market today. Make full use of your sunspot cycle with PATRIOT’slow angle signal.

Instead of typical traps, hy-gain’s resonators are placed in parallel not in series. End loading of the lower HF bands allows efficient operation with a manageable antenna height.

Introducing the new Hy-Gain PATRIOT-PLUS AV-680 with a fully tunable 3.5-4.0 MHz coverage!

With the AV-680, you get the same great traditional performance of the AV-640 on 6 through 40 Meters plus top-to-bottom capability on 80 and 75 Meters.

It`s a great way to join new local nets and roundtables, explore the 75-Meter DX window, or add exciting digital frequencies to your operating repertoire.

Simply pick the band segment you wish to use, set the 80/75 Meter resonator, and you`re in business.

• No ground orradials needed -- Effective counterpoise replaces radials, end fed with broadband matching unit.
• Automatic bandswitching -- Single coax cable feed, each band is individually tunable, wide VSWR bandwidth.
• Sleek and low-profile -- Low wind surface area, small area required for mounting, mounts easily on decks, roofs and patios.
• Built-to-last -- Hy-gain’sPatriot series antennas boast ahigh wind survival due to its sleek, but sturdy frame. The matching unit is made from all Teflon
insulated wire.
• Top Loading: Parallel resonators -- best vertical-element efficiency
• Full ground independence: No unsightly wire add-on radials
• Top-to-bottom 3.5 to 4.0 MHz coverage: Pin-point fine-tuning accuracy for rock-bottom SWR on any frequency you choose.
• Single coax feed . . . and with 100% automatic band selection!
• Low profile: Most compact ground-independent antenna available!
• Legal-limit 1500-Watt PEP: Power handling on SSB and CW*

Adding 75/80 Meter coverage without compromising the Patriot`s classic performance, ground independence, and tiny footprint was no small task. Yet, the AV-680 size, weight, and wind loading are nearly identical to the AV-640 with no unsightly radial extensions, traps, or top heavy vertical structures to render it less attractive or unsafe.

Band selection remains fully automatic, all components handle maximum legal power, and you won`t need a tuner with your solid-state rig.

The AV-680`s Expanded-Frequency MatchboxTM circuit ensures low SWR readings on every band, along with an upgraded balun design that concentrates all of your power in the antenna where it belongs!

If space is a premium at your QTH and appearance matters, let Hy-Gain open the door to one of ham radio`s most attractive and popular bands with the new AV-680. This is your best choice for unparalleled versatility and band coverage from 6-80 Meters!

Azimuth-Elevation Rotators

super heavy-duty Azimuth-Elevation Rotators

Includes RAS-2C Controller.

RAS-1 Specs	RAS-1 @ 12 V	RAS-1 @ 18 V	RAS-1 @ 24 V
Wind Load Area	Approx. 30 square feet	Approx. 30 square feet	Approx. 30 square feet
Turning Torque in-lbs	1400 in-lbs.	1800 in-lbs.	3240 in-lbs.
Brake Torque, in-lbs.	14,000 in-lbs	14,000 in-lbs	14,000 in-lbs
Brake Construction	Double Worm Gears	Double Worm Gears	Double Worm Gears
Vertical Load	550 lbs.	550 lbs.	550 lbs.
Rotation Speed (360 degrees)	120 Seconds	90 Seconds	60 Seconds
Precision, Rotator Weight	1 degree, 29 lbs.	1 degree, 29 lbs.	1 degree, 29 lbs.
Rotation Range (Azi/Elev.)	360/180 degrees	360/180 degrees	360/180 degrees
Position Sensor	Reed Switch	Reed Switch	Reed Switch
Mast size Bottom/Elevation	2.6 bottom/2.0 elevation	2.6 bottom/2.0 elevation	2.6 bottom/2.0 elevation

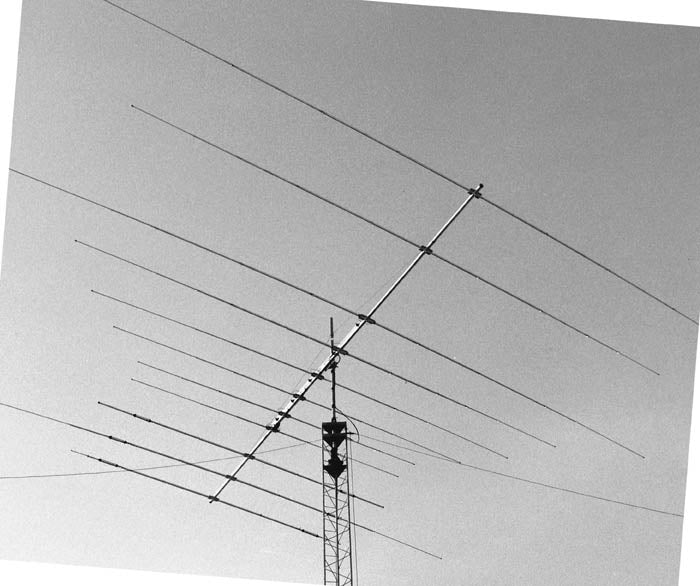

11-Element Broadband 5-Band Super Thunderbird Beam for 10, 12, 15, 17, and 20 Meters. The TH-11DX is designed to give the maximum DX performance to the serious amateur. Features a lossless log-periodic driven array on all bands with monoband reflectors. Includes high power BN-4000 balun which contributes to produce a maximum power rating of 2000 Watts continuous duty, 4000 Watts PEP on all modes. The TH-11DX also features a new corrosion resistant wire boom support system, hot dipped galvanized and stainless steel parts. Stainless steel hardware and clamps are used on all electrical connections.

The AV-18HT features automatic band selection achieved through a unique stub decoupling system which effectively isolates various sections of the antenna so that an electrical 1/4 wavelength (or odd multiple of a 1/4 wavelength) exists on all bands. Approximately 250 kHz bandwidth at 2:1 VVSWR on 80 Meters. With the addition of a base loading coil (LC-160Q) it also provides exceptional 160 Meters performance. Includes all stainless steel hardware and til-over base. Unity gain on 20, 40, 80; 2 dB on 10/15 Meters.

AV-18HT Specifications
Electrical Specifications
Bands	10, 15, 20, 40, and 80 Meters (optional mod for 160 Meters)
Max Power	1500 Watts PEP
Input Connector	SO-239
Mechanical Specifications
Height	53 feet
Weight	114 pounds
Wind Survival	75 MPH
Recommended Mast Size	n/a

This fantastic true full-size 5/8 Wave 10 / 12 Meter vertical antenna from Hy-Gain was a legend in the 70’s . . . now it’s back to prove its legendary status once again!

A Full-size radiator with lower radiation angle concentrates power closer to the ground, where you want it. Measures 22 foot, 9.5 inches. Larger diameter, heavy wall ply-tubular construction makes the new Super-Penetrator™ the absolute top omnidirectional antenna around! Four full-length radials and special machine-formed brackets give extra talk-power and overall strength.

Electrical performance has been increased to a new standard by the use of a longer radiator and double-matching tuning with linear phasing techniques that provide low SWR and more radiated energy. The double-matching also provides a DC path to ground to drain off precipitation static, giving an extremely low noise antenna capable of high power.

SPT-500 is specifically designed to accept AM-FM-SSB-DSB signals with low loss. Handles 1.5 killowatts. This antenna is illegal for 11 Meters use.

SPT-500 Antenna Specifications
Gain (dB)	5.3 dB
SWR (at resonance)	Less than 1.2:1
Nominal input impedance	52 Ohms
Lightning Protection	DC Ground
Height	Twenty-two feet, six inches
Radial Length	Eight feet nine inches
Wind (Survival)	80 MPH
Accepted mast size	1 ¼” to 1 ⅝” OD

Hy-Gains new AV-640 Patriot HF vertical is the best built, best performing and best priced multiband vertical available today. Make full use of your sunspot cycle with the Patriots low angle signal. The AV-640 uses quarter wave stubs on 6, 10, 12, and 17 meters and efficient end loading coil and capacity hats on 15, 20, 30, 40 meters. Instead of typical lossy can traps, the AV-640 resonators are placed in parallel not in series. End loading of the lower HF bands allows efficient operation with a manageable antenna height.

• No Ground or Radials Needed
• Effective counterpoise replaces radials
• End fed with broadband matching unit


• Automatic Bandswitching
• Single coax cable feed


• Each band is individually tunable
• Wide VSWR bandwidth


• Sleek and low-profile
• Low wind surface area


• Small area required for mounting
• Mounts easily on decks, roofs, and patios
• Built to Last
• High wind survival


• Matching unit made from all Teflon(R) insulated wire
• Hy-Gain Warranty
• Two year limited warranty
• All replacement parts in stock

AV-640 Specifications
Bands Covered:	6, 10, 12, 15, 17, 20, 30, and 40 Meters
2:1 VSWR Bandwidth
40 Meter:	150 KHz
30 Meter:	175 KHz
20 Meter:	500 KHz
17 Meter:	500 KHz
15 Meter:	500 KHz
12 Meter:	500 KHz
10 Meter:	1500 KHz
6 Meter:	1500 KHz
VSWR at resonance (typical):	1.5:1
Power Handling (Watts output): key down 2 minutes	1500W
Vertical Radiation Angle:	17 degrees
Horizontal Radiation Angle:	360 degrees
Height:	25.5 feet
Weight:	10.5 pounds
Wind surface area:	2.5 square feet
Wind Survival:	80 MPH
